Explain Context Switching and Its Impact on System Performance
Concept
Context switching is the process by which an operating system saves the state of a currently running process or thread and restores the state of another.
It allows multiple tasks to share a single CPU, enabling concurrency and multitasking.
Each switch ensures that when a process resumes, it continues execution exactly where it left off — as if it had never paused.
1. How Context Switching Works
When the OS scheduler decides to run a new process:
- The CPU state (registers, program counter, stack pointer) of the current process is saved to its Process Control Block (PCB).
- The scheduler selects the next ready process from the ready queue.
- The CPU state of that process is restored from its PCB.
- Execution continues from its last saved instruction.

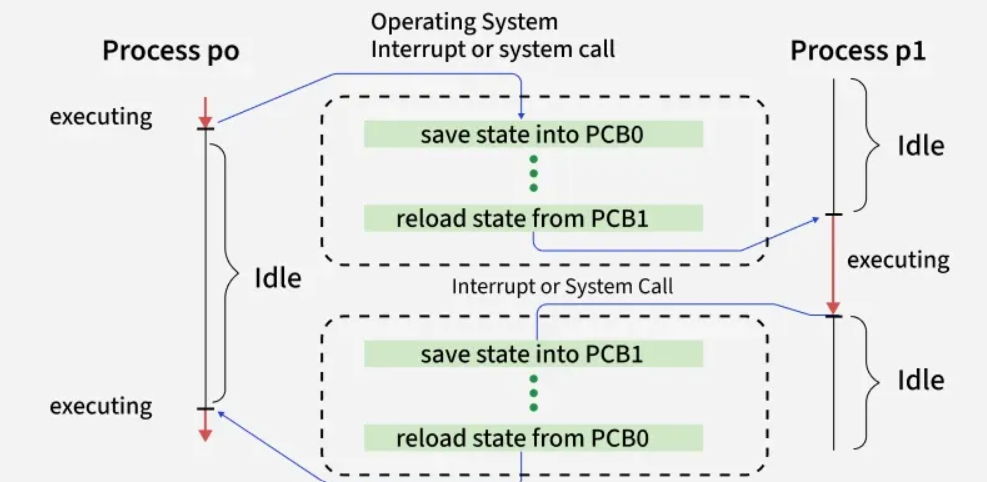

Illustration (safe for MDX):
Process A running → interrupt (timer/IO) → save A state → load B state → run B
This rapid switching happens thousands of times per second on modern CPUs.
2. Triggers for Context Switch
| Trigger Type | Example |
|---|---|
| Time Slice Expiration | Preemptive scheduler moves to next process after quantum expires. |
| I/O Wait | Process waiting for disk or network operation. |
| System Call | Process voluntarily yields CPU (e.g., sleep). |
| Interrupt Handling | External events (keyboard input, timer tick). |
3. Context Switch Between Threads vs Processes
| Aspect | Thread | Process |
|---|---|---|
| Memory Space | Shared | Separate |
| Switch Overhead | Low | High |
| Typical Use | Lightweight parallelism | Isolation or fault tolerance |
Thread context switches are cheaper because threads share the same address space, whereas process switches require memory mapping changes and cache invalidations.
4. Cost of Context Switching
While necessary for multitasking, context switching introduces overhead:
- CPU time wasted on saving/restoring registers.
- Cache misses due to context change.
- TLB (Translation Lookaside Buffer) flushes when switching processes.
- Increased latency in real-time systems.
Performance Impact Example: If each switch costs 1 µs and happens 50,000 times per second, that’s 5% CPU time lost in overhead.
5. Reducing Context Switching Overhead
- Use cooperative multitasking where possible (e.g., async I/O).
- Group related tasks in the same thread to reduce switching.
- Tune scheduler quantum to balance fairness and overhead.
- Use thread pools to reuse threads instead of creating/destroying frequently.
- Avoid unnecessary blocking calls (disk, network).
6. Real-World Example
Scenario: A web server uses multiple threads to serve HTTP requests. If too many threads block on I/O, the OS keeps switching between waiting threads — high context-switch frequency reduces throughput. Using non-blocking async I/O or event loops reduces unnecessary switches and improves performance.
7. Context Switching vs Multithreading
| Aspect | Context Switching | Multithreading |
|---|---|---|
| What It Is | CPU mechanism | Programming abstraction |
| Purpose | Share CPU among processes | Execute tasks concurrently |
| Control | Managed by OS | Managed by programmer/runtime |
| Overhead | Hardware-level | Software-level (sync, locks) |
8. Interview Tip
- Explain how context switching enables concurrency on single-core systems.
- Discuss trade-offs — fairness vs performance.
- Mention how thread scheduling policies (round-robin, priority-based) affect switch frequency.
- Be ready to discuss profiling tools (e.g., Linux
vmstat,perf, or Windows Task Manager context switches/sec metric).
Summary Insight
Context switching is the heartbeat of multitasking — it powers concurrency but taxes performance. The best systems minimize unnecessary switches while maintaining responsiveness.
