Explain the MVC Architecture Pattern
software-engineering • medium

Explain the MVC Architecture Pattern

MediumCommonMajor: software engineeringnetflix, apple

Concept

The Model–View–Controller (MVC) architecture is a foundational software design pattern that promotes separation of concerns in application development.
It structures applications into three distinct layers — Model, View, and Controller — each responsible for a specific aspect of the system.

This design allows independent development, testing, and scaling of each layer, improving maintainability and reducing coupling between user interface logic and business logic.

1. Components of MVC

Model

  • Represents data, state, and business rules.
  • Encapsulates database interactions, validation logic, and computation.
  • Notifies the View when data changes (in reactive implementations like in Django, Rails, or ASP.NET MVC).

Example:
A User model defines attributes like id, name, and email, and methods like save() or authenticate().

View

  • The presentation layer — defines how data is displayed to the user.
  • Should contain minimal business logic and rely on the controller or templating engine for dynamic rendering.
  • In modern frontends (React, Vue, Angular), Views often consume data from APIs while maintaining separation of concerns.

Example:
An HTML template or UI component displaying the user's profile and updating dynamically when data changes.

Controller

  • Acts as a mediator between the View and the Model.
  • Receives user input from the View, processes it (via the Model), and determines what the next View should display.
  • Implements the application logic rather than business logic.

Example:
Handles an HTTP request like /users/update, updates the model, and returns a confirmation page.

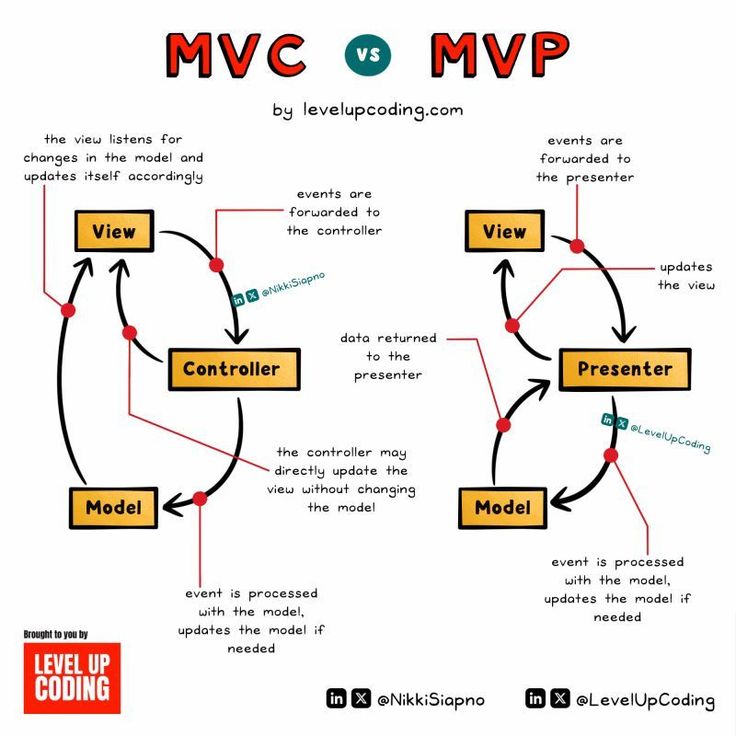

2. MVC Workflow in Action

  1. The user interacts with the interface (View) — e.g., clicks “Submit.”
  2. The Controller receives the input and decides what to do with it.
  3. The Controller updates the Model (e.g., saves new data).
  4. The Model changes state and notifies the View.
  5. The View re-renders to reflect updated data.

This cyclic flow decouples responsibilities and allows multiple developers to work on different layers concurrently.

3. Example (safe for MDX)

Model: class User { id, name, email }
View: profile.html – renders "Hello, {user.name}"
Controller: /users route – handles GET/POST for profile updates

In a real-world web framework:

  • Model: ORM class (Django Model, Rails ActiveRecord)
  • View: HTML template or React component
  • Controller: Handles request routing and response logic

4. Advantages of MVC

  • Separation of Concerns: Changes in UI don’t affect business logic.
  • Parallel Development: Teams can develop Models, Views, and Controllers independently.
  • Testability: Business logic can be unit-tested without UI dependencies.
  • Scalability: MVC architecture scales well as applications grow in complexity.
  • Reusability: Models and Views can often be reused across different applications or platforms.

5. Modern Variations and Adaptations

While MVC originated in desktop applications (Smalltalk, 1970s), it has evolved for the web and mobile world:

  • MVVM (Model–View–ViewModel): Used in frameworks like Angular and SwiftUI, separating UI state management.
  • MVP (Model–View–Presenter): Common in Android architecture.
  • MVC in Web: Implemented in frameworks such as Ruby on Rails, Django, Laravel, and ASP.NET MVC.

These variations adapt the original concept to new UI patterns and asynchronous interactions while preserving the core idea of separation.

6. Real-World Usage

  • Netflix: Uses MVC principles to decouple the API (Model) from user-facing apps (View) via controller layers.
  • Apple’s iOS MVC: Each ViewController manages screen-specific UI and interacts with Models.
  • Enterprise Systems: Controllers handle REST endpoints, Models represent business objects, and Views render data or templates.

7. Common Pitfalls and Best Practices

Pitfalls:

  • Controllers becoming “fat” (too much logic).
  • Poor separation where Views directly manipulate Models.

Best Practices:

  • Keep Models pure (no UI logic).
  • Use Services or Helpers to reduce controller bloat.
  • Employ ViewModels or DTOs to bridge Models and Views in complex systems.

Interview Tip

  • Emphasize separation of concerns and testability.
  • Be prepared to explain how MVC scales to large projects.
  • Use a real framework (Django, Rails, .NET MVC) to ground your answer.
  • Clarify how MVC differs from MVVM and MVP when discussing modern patterns.

Summary Insight

MVC enforces clarity through separation — Models handle the data, Views handle the display, and Controllers handle the logic in between. By isolating responsibilities, teams build software that’s modular, scalable, and easier to maintain.
