Interpret a Confusion Matrix and Its Derived Metrics

Concept

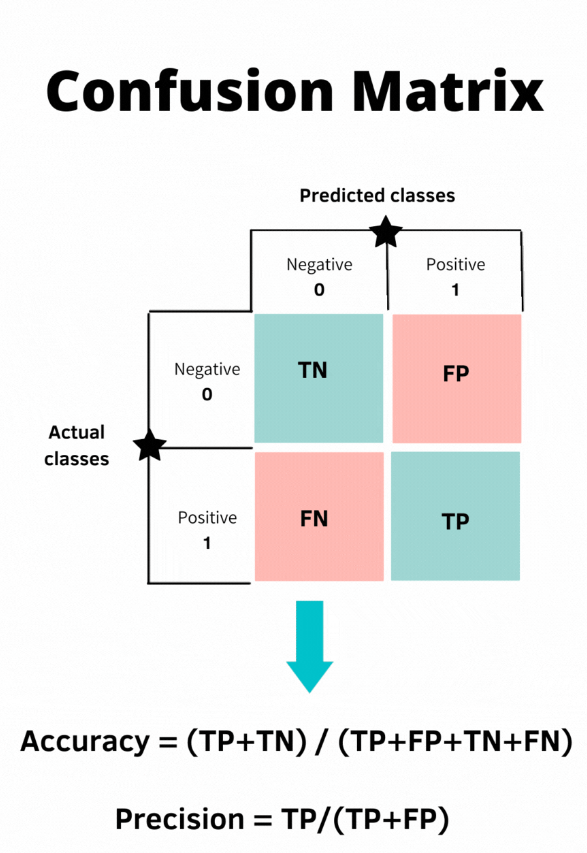

A confusion matrix is a table that evaluates the performance of a classification model by comparing actual vs. predicted labels.
It provides granular insight into how well a model distinguishes between different classes, exposing both systematic errors and bias tendencies that simple accuracy might hide.

Each cell represents a specific outcome:

• True Positive (TP): Correctly predicted positive cases.
• True Negative (TN): Correctly predicted negative cases.
• False Positive (FP): Incorrectly predicted positive (Type I error).
• False Negative (FN): Missed positive case (Type II error).

1. Derived Metrics (MDX-safe formulas)

These metrics are computed directly from the confusion matrix and describe different aspects of performance.

Precision = TP / (TP + FP)
Recall = TP / (TP + FN)
F1 = 2 * (Precision * Recall) / (Precision + Recall)
Accuracy = (TP + TN) / (TP + TN + FP + FN)
Specificity = TN / (TN + FP)

• Precision: How many predicted positives were actually correct.

  High precision means few false alarms (useful for spam detection).

• Recall (Sensitivity): How many actual positives were identified.

  High recall means fewer missed cases (vital for disease screening).

• F1-Score: Harmonic mean of precision and recall; balances both.
• Accuracy: Overall correctness; misleading on imbalanced data.
• Specificity: Ability to correctly identify negatives.

2. Interpreting Trade-offs

• Increasing recall usually decreases precision — a key trade-off in imbalanced problems.
  Example: In cancer detection, we tolerate more false positives (low precision) to minimize missed true cases (high recall).
• For fraud or anomaly detection, F1-score is preferred because it balances both metrics.
• ROC-AUC and PR-AUC summarize model discrimination ability across thresholds.

3. Real-World Scenarios

A. Medical Diagnosis

• Positive = “disease present”, Negative = “disease absent.”
• Goal: High recall — missing a positive case (false negative) could be fatal.

B. Spam Detection

• Positive = “spam email.”
• Goal: High precision — too many false positives cause user frustration by flagging valid emails.

C. Credit Card Fraud

• Positive = “fraudulent transaction.”
• Goal: Balance recall (catch all fraud) and precision (avoid false alarms).

Each domain prioritizes different metrics based on the cost of errors — a key discussion point in data science interviews.

4. Visualization and Model Debugging

• Use sklearn.metrics.confusion_matrix to compute matrix and ConfusionMatrixDisplay for visualization.
• Combine with heatmaps or normalized percentages for intuitive interpretation.
• When classes are imbalanced, always normalize rows to reflect recall per class instead of raw counts.

from sklearn.metrics import confusion_matrix, ConfusionMatrixDisplay

cm = confusion_matrix(y_true, y_pred, normalize="true")
disp = ConfusionMatrixDisplay(confusion_matrix=cm)
disp.plot(cmap="Blues")

5. Best Practices

• Report multiple metrics — precision, recall, F1 — instead of relying on accuracy alone.
• Choose thresholds that align with business objectives (e.g., 0.3 instead of 0.5).
• Visualize Precision–Recall curves for highly skewed datasets.
• Explain the cost implication of each type of error during interviews.

Tips for Application

• When to discuss: When explaining model evaluation or comparing classifiers.

• Interview Tip: Use a domain example:

  “In a disease detection model, I optimized recall from 0.82 to 0.93 by adjusting the decision threshold — reducing false negatives by 40%.”

Key takeaway: A confusion matrix goes beyond raw accuracy — it reveals the structure of model errors, enabling data scientists to tune models toward metrics that align with real-world costs and priorities.
