How Would You Design a Scalable Data Pipeline?

Concept

A data pipeline is an automated system that moves and transforms data from source systems to destinations such as analytics dashboards, data warehouses, or machine learning models.
It ensures reliability, scalability, and consistency in handling large, continuously generated datasets.

At scale, a pipeline must process diverse data types (structured, semi-structured, unstructured) in real time or batch mode, while maintaining fault tolerance and data integrity.

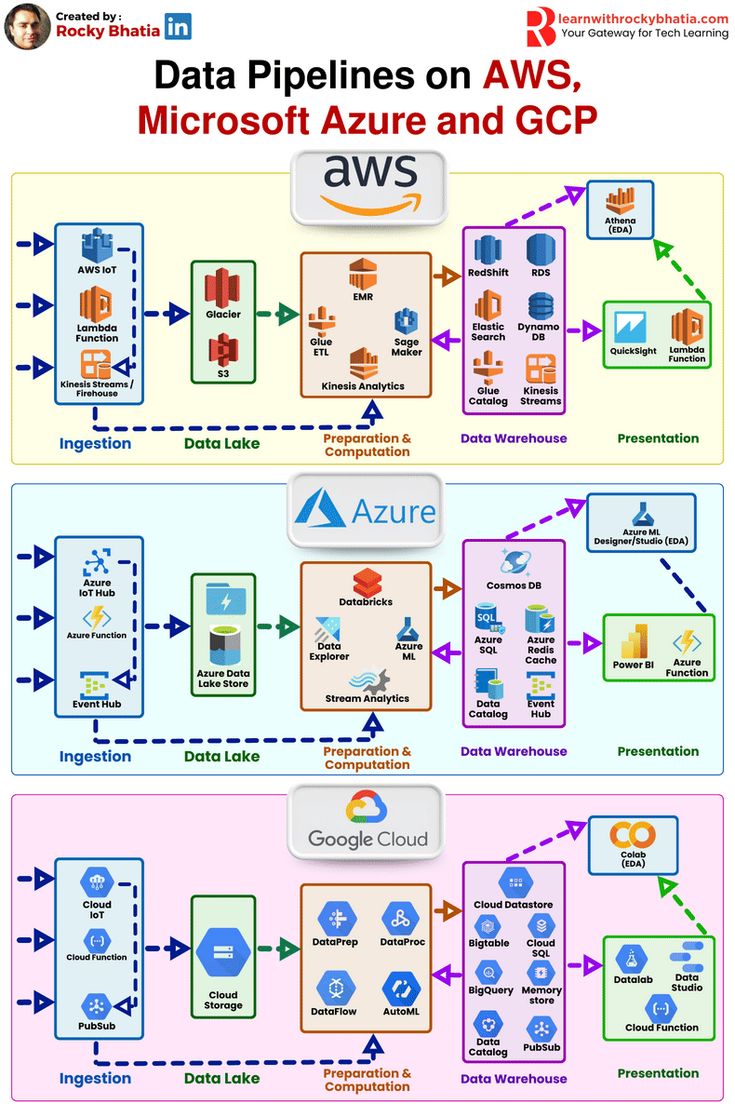

1. Core Architecture Overview

A scalable data pipeline typically consists of five layers:

1. Data Ingestion Layer
   Responsible for acquiring raw data from multiple sources:

   • Batch ingestion: Using tools like Apache Sqoop, AWS Glue, or scheduled ETL jobs.
   • Streaming ingestion: Using Kafka, AWS Kinesis, or Google Pub/Sub for real-time feeds.
   • Sources include APIs, databases, event streams, IoT devices, and external data partners.

2. Storage Layer
   Manages raw and processed data efficiently:

   • Data Lake: Stores unstructured and semi-structured data in formats like Parquet, Avro, or ORC. (e.g., Amazon S3, Google Cloud Storage, Azure Data Lake).
   • Data Warehouse: Structured, query-optimized storage (e.g., Snowflake, BigQuery, Redshift, Databricks Delta).
   • Use partitioning and compression for performance and cost efficiency.

3. Transformation Layer (ETL/ELT)

   • ETL (Extract, Transform, Load): Transform data before loading into the warehouse — best for strict schema requirements.
   • ELT (Extract, Load, Transform): Load raw data first and transform later in-database — ideal for scalability with modern cloud warehouses.
   • Tools: Apache Spark, dbt, Airflow, Databricks, Flink, Beam.
   • Ensure idempotent transformations — running jobs multiple times should not alter results.

4. Orchestration and Workflow Management
   Coordinates dependencies and job scheduling:

   • Apache Airflow, Prefect, Dagster, or AWS Step Functions.
   • Supports retries, error handling, and monitoring for long-running workflows.

5. Serving Layer (Consumption)
   Makes curated data available for analytics or downstream systems:

   • Business Intelligence (BI): Tableau, Looker, Power BI.
   • Machine Learning: Feature stores (Feast, Tecton) or model inputs.
   • Data APIs: Serve enriched data via REST or GraphQL for applications.

2. Design Principles for Scalability and Reliability

A. Scalability

• Use distributed systems (Spark, Flink, Kafka) to parallelize processing.
• Implement auto-scaling for compute and storage in the cloud.
• Optimize storage formats — columnar (Parquet, ORC) for analytics, row-based for transactional workloads.
• Employ partitioning and bucketing for query efficiency.

B. Fault Tolerance

• Ensure exactly-once processing semantics in streaming pipelines.
• Use checkpointing and idempotent writes to recover gracefully from failures.
• Maintain redundant replicas in storage (e.g., S3 multi-AZ redundancy).

C. Modularity and Reusability

• Separate extraction, transformation, and loading logic into reusable components.
• Define data contracts between teams to avoid schema drift.

D. Data Quality and Validation

• Implement validation at ingestion and transformation:
  • Schema enforcement (using Great Expectations, Pandera, or dbt tests).
  • Anomaly detection for missing values, duplicates, or range violations.
  • Monitor data freshness and completeness metrics.

E. Observability

• Integrate logging, metrics, and alerts:
  • Use Prometheus + Grafana or Datadog for metrics visualization.
  • Alert on job failures, lag in streaming offsets, or schema mismatches.
  • Implement lineage tracking with OpenLineage or DataHub to trace transformations.

3. Example: Netflix Data Pipeline

Netflix’s real-time data platform exemplifies scalable design:

• Kafka for event ingestion.
• Apache Flink for real-time processing.
• S3 + Iceberg for unified data lake storage.
• Presto and Spark for analytics.
• Airflow orchestrates ETL workflows, ensuring fault tolerance and modularity.

This architecture supports petabyte-scale streaming analytics with sub-minute latency, serving both personalization and monitoring applications.

4. Batch vs Streaming Pipelines

Many modern systems adopt a Lambda (batch + streaming) or Kappa (streaming-only) architecture for flexibility and scalability.

5. Data Governance and Security

• Access Control: Enforce role-based access via IAM or data catalog policies.
• Encryption: Secure data in transit (TLS) and at rest (KMS, HSM).
• Compliance: Follow standards (GDPR, HIPAA) with data masking and audit trails.
• Metadata Management: Use catalogs (AWS Glue, DataHub, Amundsen) for discoverability and traceability.

6. Common Challenges

7. Real-World Tradeoffs and Design Decisions

“We migrated from an ETL-based batch system to ELT on Snowflake to leverage in-warehouse transformations and reduce pipeline latency by 40%. However, it increased cloud storage costs, so we introduced lifecycle management for stale data.”

Such tradeoff discussions demonstrate senior-level understanding during interviews.

8. Best Practices

• Use idempotent transformations — reruns should yield consistent results.
• Separate raw, staging, and production data zones in your lake.
• Implement data contracts to formalize schema expectations.
• Version-control transformation logic and metadata (e.g., Git + dbt).
• Automate everything: CI/CD pipelines for data workflows.

Tips for Application

• When to discuss:
  In system design interviews or when asked about data architecture, ETL scalability, or ML pipeline design.

• Interview Tip:
  Articulate end-to-end flow:

  “Our pipeline ingests data from Kafka into S3, transforms it with Spark jobs scheduled by Airflow, and loads it into Snowflake. We applied Great Expectations for validation and used OpenLineage to track data provenance.”

Key takeaway:
A scalable data pipeline must balance throughput, consistency, fault tolerance, and observability.
It’s not just about moving data — it’s about engineering trust and efficiency into every stage of the data lifecycle.
